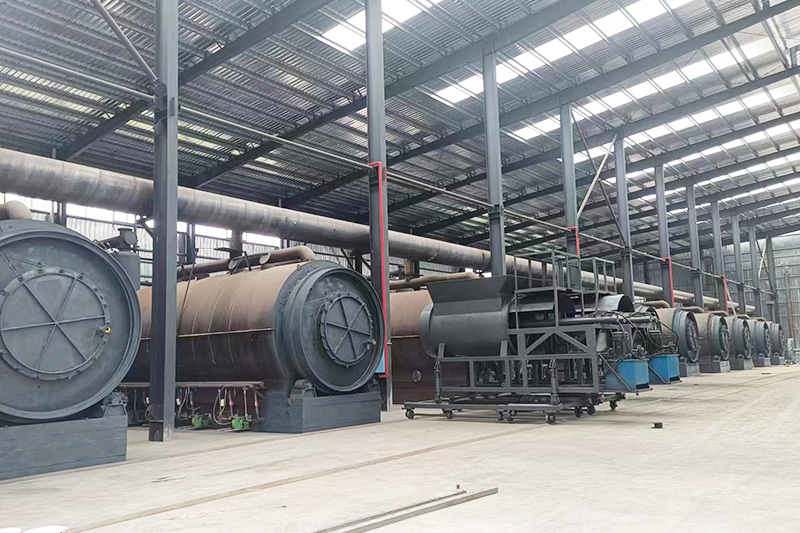

Waste plastic pyrolysis plant
- Commodity name： Waste plastic pyrolysis plant
- Product Description
-
Plastic pyrolysis is an important process that mainly involves converting waste plastics into other valuable materials. The following are the basic steps and main products of plastic pyrolysis:
Pyrolysis process :
1. Pyrolysis : The processed plastic is sent into the main furnace and undergoes thermal decomposition at high temperatures (usually above 300 ° C). During this process, the long chain molecules of plastic break into shorter segments or monomers.

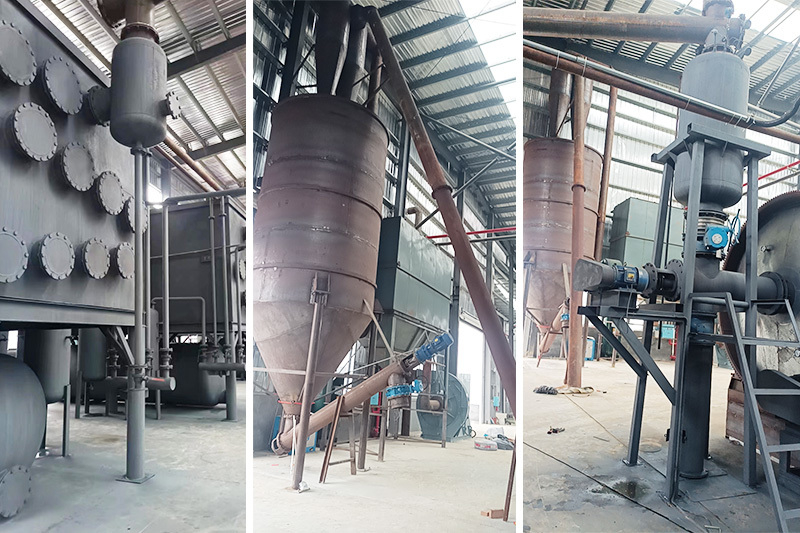

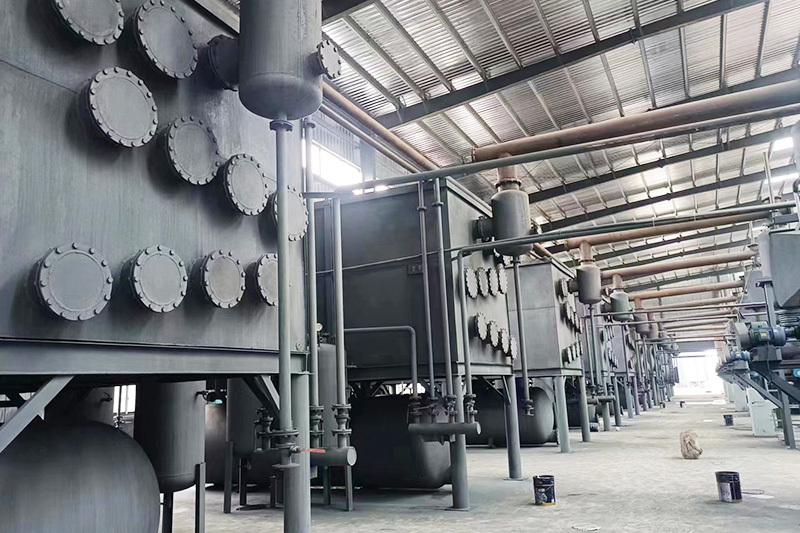

2. Cooling and Separation : The pyrolysis products are cooled through a cooling system and then separated. The purpose of this step is to separate products with different properties, such as gas, liquid, and solid.
Main products:
1. Gas : mainly includes light hydrocarbon gases such as hydrogen, methane, and ethane. These gases have a high calorific value and can be used as fuel, such as for heating pyrolysis furnaces or other industrial purposes.
2. Liquid : The main liquid product is plastic oil, which has properties similar to petroleum. These plastic oils can be used to produce fuels, lubricants, or other chemical raw materials.
3. Solid : The solid product is mainly coke or carbon black formed during the pyrolysis process. These solid products can be used as fuel or further processed into other materials, such as electrode materials or activated carbon.
In addition, harmful gases and pollutants may also be generated during the plastic pyrolysis process. Therefore, it is necessary to strictly control and treat the emissions from the pyrolysis furnace to ensure compliance with environmental requirements.
Overall, plastic pyrolysis is an effective resource recovery method that can convert waste plastics into valuable energy and materials, while reducing the pollution of plastic waste to the environment. With the development of technology and the improvement of environmental awareness, plastic pyrolysis technology is expected to be more widely applied in the future.
Prolysis plant models and specification
product model Specifications per batch
capacityContainers Gross weight power RD-2600*6600 2600mm*6600mm 10T 2*40HQ 27T 24KW RD-2800*6600 2600mm*6601mm 12T 1*40HQ&1*FR 36T 25kw RD-2600*7700 2600mm*6602mm 12T 1*40HQ&1*FR 39T 25kw RD-2800*7700 2600mm*6603mm 15T 1*40HQ&1*FR 41T 27kw RD-2800*8000 2600mm*6604mm 15T 1*40HQ&1*FR 42T 27kw Plastic pyrolysis is made of fuel oil, wax oil and carbon black, of which fuel oil from plastic pyrolysis and tires from tire cracking belong to heavy oil, that is, fuel oil can be used as fuel. At the same time, wax oil can be refined into plastic additives, modifiers.

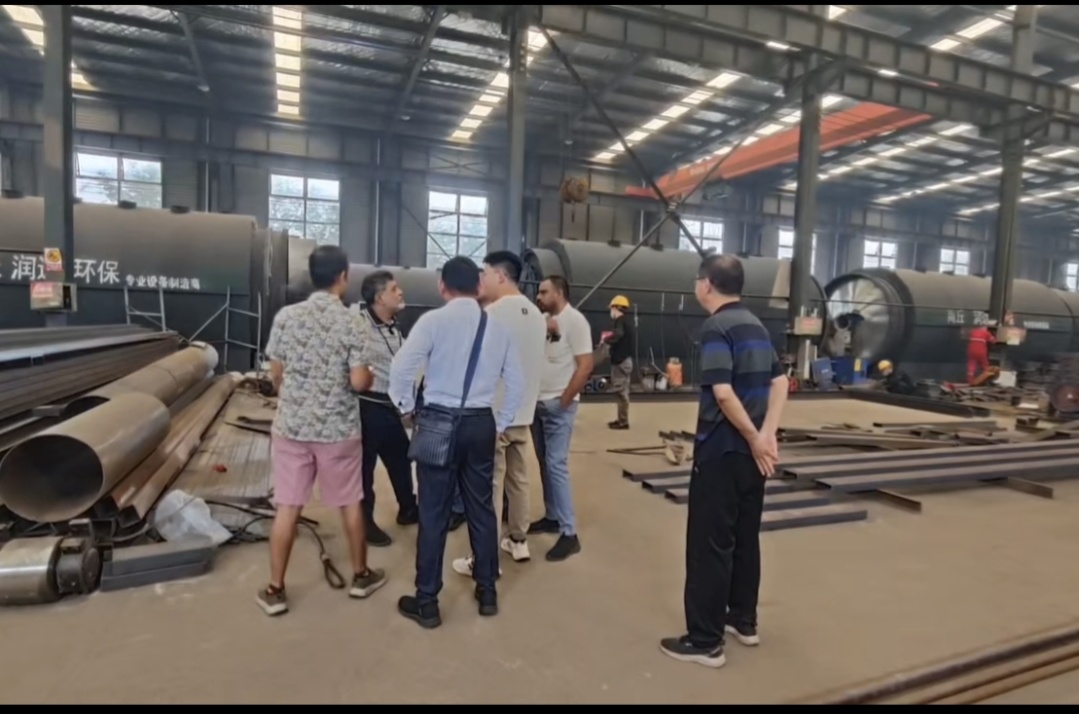

Customer Site
